Product Description
Brief Introductions of Reaming Shells
Reaming shell is used to couple the drill bit with the core barrel. It is suitable for use on all conventional and wireline core barrel. This product is mainly designed to ream the hole to the standard diameter. It can keep the stability of the core barrel. When the old bit is replaced by the new one, reaming shell can also provide sufficient clearance for the new bit. It can also help to resist the abrasion of the core barrel. This type of diamond tool is physically longer than the standard type. So for the compensation of the difference in reaming shell length, an appropriate inner tube extension is necessary to be used.
Ranging from broken and abrasive to consolidated and non-abrasive formations, reaming shells are all suitable to use. We can produce reaming shells with 6", 10" and 18" length.
Features of Reaming Shells
1) Acts as a stabilizer for drill bit.
2) Be set with natural or synthetic diamond.
Our reaming shells enjoy the best quality and most special design in the industry. With several different types, we try our best to satisfy any of your requirements.
Available Size for our Reaming Shells
Q" Series: AQ,BQ,NQ,HQ,PQ(Front end & Back end Type)
T Series: T36,T46,T56,T66,T76,T86
WF Series: HWF,PWF,SWF,UWF,ZWF
WT Series: RWT,EWT,AWT,BWT,NWT,HWT(Single Tube/Double Tube)
WG Series: EWG,AWG,BWG,NWG,HWG (Single Tube/Double Tube)
WM Series: EWM,AWM,BWM,NWM
T2/T6 Series: T256,T266,T276,T286,T2101/T676,T686,T6101,T6116, T6131,T6146,T6H
Others: NMLC,HMLC,LTK48,LTK60,TBW,TNW,ATW,BTW,NTW,AQTK ,NXD3,NXC,T6H,SK6L146,TT46,TB56,TS116,CHD101
| |
| Q Series | AQ, BQ, NQ. NQ2, NQ3, NQTT, HQ, HQ3, HQTT, PQ, PQ3, PQTT, AQTK, BQTK |
| T2 Series | T2 46, T2 56, T2 66, T2 76, T2 86,T2 101 |
| T6 Series | T6 76, T6 86, T6 101,T6 116,T6 131,T6 146, |
| T6S Series | T6S 76, T6S 86, T6S 101, T6S 116,T6S 131,T6S 146 |
| T Series | T36, T46, T56, T66, T76, T86 |
| Z Series | Z46, Z56, Z66, Z76, Z86, Z101, Z116, Z131, Z146 |
| B Series | B36, B46, B56, B66, B76, B86, B101, B116, B131, B146 |
| WF Series | HWF, PWF, SWF, UWF, ZWF |
| WT Series | RWT, EWT, AWT, BWT, NWT, HWT (Single Tube, Double Tube) |
| WG Series | EWG, AWG, BWG, NWG, HWG ( Single Tule , Double Tube ) |
| WM Series | EWM, AWM, BWM, NWM, HWM |
| Others | NMLC, HMLC, LTK48, LTK60, BGM, NGM, ADBG, TBW, TNW, ATW, BTW, NTW, HTW, NXD3, AX, NX, NXC, AXT, T6H, 4 9/16, NWD4, 412F, SK6L146,TT46, TT56, TB56, TS16, CHD101 |
| Chinese Standard | 56mm , 59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm, 170mm, 219mm,275mm |
| Customised | Others |
Product Tags:
|
|

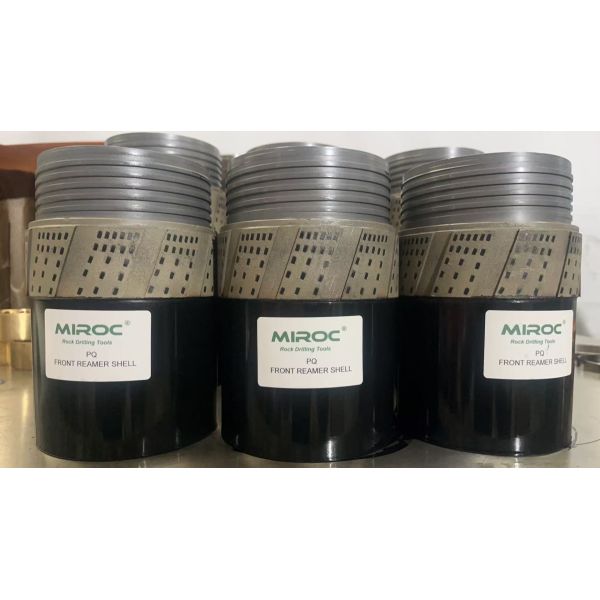

Surface Set Diamond Reaming Shell for HQ NQ PQ Sizes in Mineral Exploration Drilling Images
|
